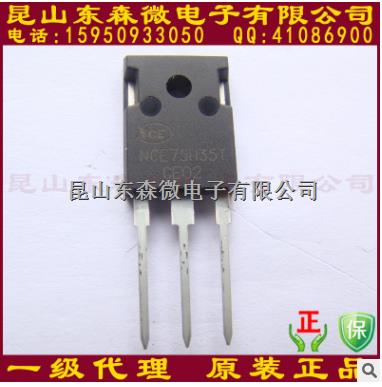

| 品牌 | NCE | 型号 | NCE75H35T |
| 封装 | TO-247 | 用途 | SW-REG/开关电源 |
| 类型 | 绝缘栅型场效应管 | 沟道类型 | N沟道 |
| 导电方式 | 增强型 | | |
NCE一级代理,原装正品,可开17%增票,诚招分销商.
Package:TO-247,VDS (max):75V,ID(max):350A,PD(max):460W,VTH (typ):3V,VGS (max):20V,RDS(on)(typ)(@10V):1.7mΩ,RDS(on)(typ)(@4.5V):,RDS(on)(typ)(@2.5V):
Description
The NCE75H35T uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in automotive applICations and a wide variety of other applications.
General Features
● VDSS =75V,ID =350A
RDS(ON) < 2.2mΩ @ VGS=10V （Typ：1.7 mΩ）
● Good stability and uniformity with high EAS
● Special process technology for high ESD capability
● High density cell design for ultra low Rdson
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation
Application
●
Automotive applications
●
Hard switched and high frequency circuits
●
Uninterruptible power supply
