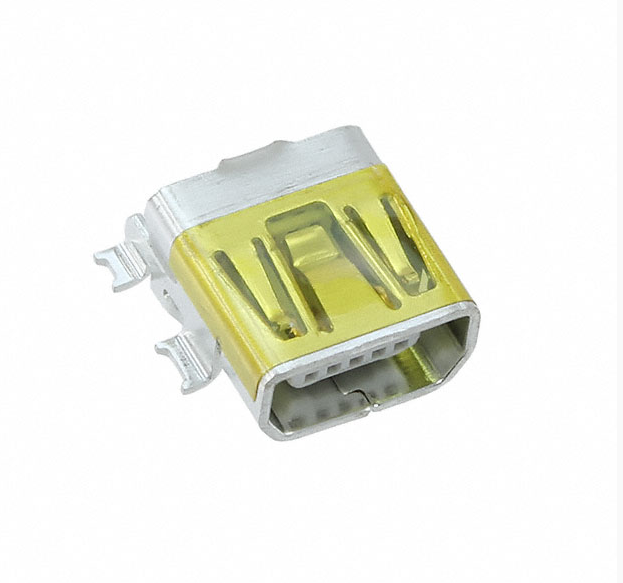

USB On-The-Go (OTG) Mini-AB Receptacle, Right Angle, Surface Mount, with Shell Tabs, PlastIC Pegs and Cover Tape, Color Gray, Lead-Free
Mates With Part(s):
USB OTG mini-A Plug, USB OTG mini-B Plug, 88753 Cable Assembly
Status Active
Category I/O Connectors
Series 67803
Application Wire-to-Board
Component Type Receptacle
Overview Consumer USB Products
Product Name USB 2.0, USB OTG (On-The-Go)
Type Mini-AB (OTG)
UPC 822348781034
Physical
Boot Color N/A
Circuits (Loaded) 5
Circuits (maximum) 5
Color - Resin Gray
Gender Receptacle
Lock to Mating Part Yes
Material - Metal Copper Alloy
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Resin Nylon
Net Weight 0.685/g
Number of Rows 1
Orientation Right Angle
PCB Locator Yes
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Panel Mount No
Pitch - Mating Interface 0.80mm
Pitch - Termination Interface 0.80mm
Plating min - Mating 0.762μm
Plating min - Termination 3.810μm
Polarized to Mating Part Yes
Polarized to PCB Yes
Ports 1
Temperature Range - Operating 0°C to +50°C
Termination Interface: Style Surface Mount
Waterproof / Dustproof No
Wire Size AWG N/A
Electrical
(Please review the Product Specification for specific details.)
Current - Maximum per Contact 1.0A
Shielded Yes
Voltage - Maximum 30V
Solder Process Data
Solderability Shelf Life Statement
Duration at Max. Process Temperature (seconds) 010
Lead-freeProcess Capability REFLOW
Max. Cycles at Max. Process Temperature 001
Process Temperature max. C 260
Material Info
Reference - Drawing Numbers
Packaging Specification PK-67503-001
Product Specification PS-67803-001
Sales Drawing SD-67803-002
