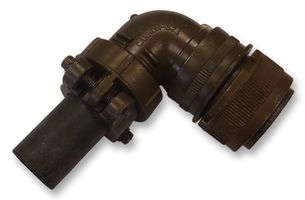

| 品牌 | AMPHENOL | 型号 | MS3108B-18-4P |
MS3108B-18-4P AMPHENOL 100 148.02 7-15个工作日
SpecifICation: MIL-DTL-5015
Sealing: UnseaLED
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Contacts, # of: 4
Contact Style: Pin
Termination Method: Solder
Crimp Wire Gauge: 18,16
Insert Arrangement: 18-4
Contact Size: 4#16
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Silver
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Hard Dielectric
Amperage Rating: 13A
Operating Voltage AC V RMS Max: 900
Operating Temperature °F (°C): -67 to +257 (-55 to +125)
Contact Mating Life: 500
Insert Rotation/Keying:
Operating Voltage DC: 1250
Orientation: Right Angle
Service Rating: D
Endbell Type: Split Threaded Adapter
Export Class: EAR / EAR99
RoHS: No
Weight (lbs): 0.15609
Weight (g): 70.80000
免责声明： 以上所展示的信息由企业自行提供，内容的真实性、准确性和合法性由发布企业负责。买卖IC网对此不承担任何保证责任。
以上是，原装现货AMPHENOL连接器MS3108B-18-4P可供样，品牌:AMPHENOL 型号:MS3108B-18-4P的信息
