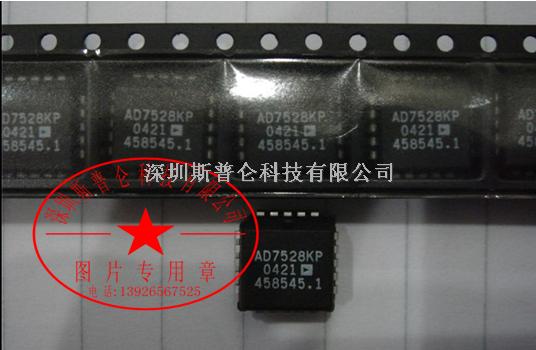

集成电路AD7528KP

FEATURES On-Chip Latches for Both DACs +5 V to +15 V Operation DACs Matched to 1% Four Quadrant Multiplication TTL/CMOS Compatible Latch Free (Protection Schottkys not Required) APPLICATIONS Digital Control of: Gain/Attenuation Filter Parameters Stereo Audio Circuits X-Y Graphics

GENERAL DESCRIPTION The AD7528 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3" wide 20-lead DIPs and in 20-lead surface mount packages. Separate on-chip latches are provided for each DAC to allow easy microprocessor interface. Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7528’s load cycle is similar to the write cycle of a random access memory and the device is bus compatible with most 8-bit microprocessors, including 6800, 8080, 8085, Z80. The device operates from a +5 V to +15 V power supply, dissipating only 20 mW of power. Both DACs offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC. PRODUCT HIGHLIGHTS 1. DAC-to-DAC matching: since both of the AD7528 DACs are fabricated at the same time on the same chip, precise matching and tracking between DAC A and DAC B is inherent. The AD7528’s matched CMOS DACs make a whole new range of applications circuits possible, particularly in the audio, graphics and process control areas. 2. Small package size: combining the inputs to the on-chip DAC latches into a common data bus and adding a DAC A/DAC B select line has allowed the AD7528 to be packaged in either a small 20-lead DIP, SOIC or PLCC.

专业代理，全新到货，大量现货欢迎询问！！！ 质优价廉，品质保证！ 批号：12+ 专业代理全线产品，优势的进货渠道，专业的销售团队，一手货源，全国最低价供应！ 为您提供专业、快捷、可靠的产品 深圳斯普仑科技有限公司 Shenzhen Spring Technology Co.,Ltd 地址：深圳市福田区振兴西路101栋华匀大厦730室 Add：Rm 730, Huayun building, Zhenxing Rd, Futian district,Shenzhen City, Guangdong Province 518031 成先生 电话（Tel）：(+86-755) 8352 1389/ 8350 5153 传真（Fax）：(+86-755) 8350 2530 邮箱: szspl5@aliyun.com 网址：http://www.szspl-ic.com/ http://www.splkj.com/
